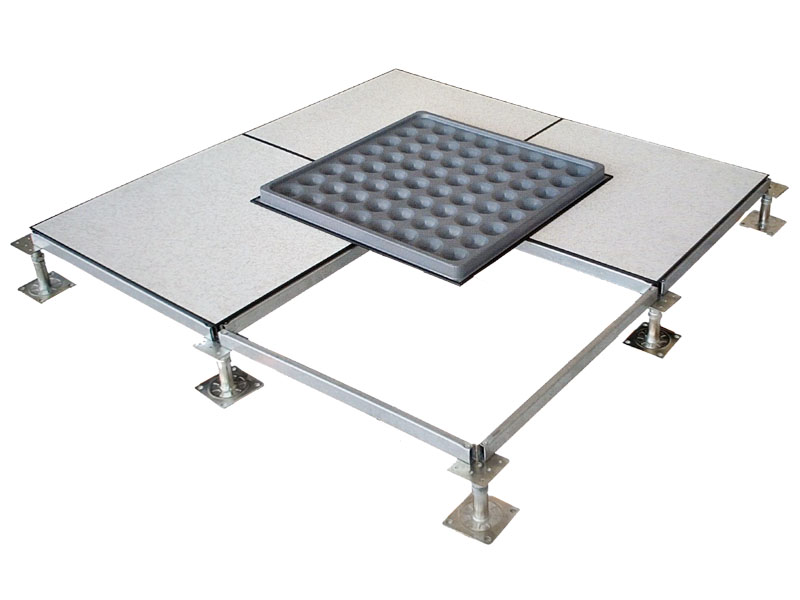

It is made up by drawing the high quality steel plate with spot welding, spraying plastic and the lumen is filled with froth cement; its surface affixes the decorating plate of high temperature resistant and non-flaming; it around is setting the electric filler rod, bracket, handle girder with whole galvanization; the height of bracket can be adjustable with auto-locking function
- Raised floor with black edge
- Raised floor without black edge
- Raised floor with micro-edge
- New Type 1-600*600*40mm
- New Type 2-500*500
Description:

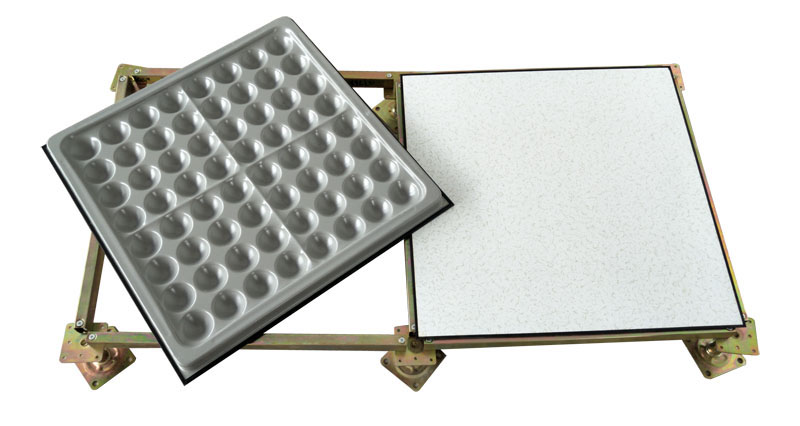

It is made up by drawing the high quality steel plate with spot welding, spraying plastic and the lumen is filled with froth cement; its surface affixes the decorating plate of high temperature resistant and non-flaming; it around is setting the electric filler rod, bracket, handle girder with whole galvanization; the height of bracket can be adjustable with auto-locking function.
Feature:
1).Designed specially for computer room, control rooms, etc
2).The raised floor consist of following parts"
a) 30mm or 35mm thickness cement core panel
b) 4 pieces of black PVC strips along the side of panel
c) Covering: HPL/PVC
d) pedestal, stringer, screws
3).Light cementitious fill makes panel solid and quite
4).Completely non-combustible; class A flame spread and smoke development rating
5).Easy and quick accessibility, resist pollution, easy to clean, durable
Application:
Be applied in all kinds of computer rooms widely, especially in school's computer rooms such as in multimedia classrooms, computer rooms, etc.
Specification:
| Type | Size(mm) | Fire Performance | Concentrated Load | Impact Load (N) |
Ultimate Load (N) |
Uniform Load (N/m2) |
Rolling Load (N) | |||
| LB | N | KG | 10 times | 105 times |
||||||
| FS450 | 600x600x35 | A | ≥450 | ≥1960 | ≥200 | ≥295 | ≥5880 | ≥9272 | 1958 | 1566 |
| FS680 | 600x600x35 | A | ≥680 | ≥2950 | ≥301 | ≥445 | ≥8850 | ≥1250 | 2946 | 2356 |
| FS800 | 600x600x35 | A | ≥800 | ≥3350 | ≥363 | ≥536 | ≥11250 | ≥16100 | 3560 | 2670 |
| FS1000 | 600x600x35 | A | ≥1000 | ≥4550 | ≥450 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
| FS1250 | 600x600x35 | A | ≥1250 | ≥5560 | ≥567 | ≥780 | ≥16680 | ≥33000 | 5560 | 4450 |
| FS1500 | 600x600x35 | A | ≥1500 | ≥6675 | ≥670 | ≥1005 | ≥19892 | ≥34500 | 6675 | 5340 |
| FS2000 | 600x600x35 | A | ≥2000 | ≥8900 | ≥906 | ≥1340 | ≥26700 | ≥46000 | 8900 | 7120 |
Description

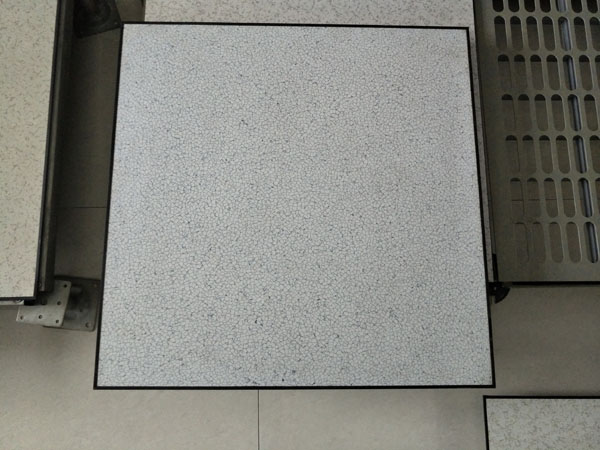

Anti-static steel raised floor without edge trim choose the superior steel sheet with standard thickness. After stamping and soldering to reshape, fill the high-intensive cementis in the panel to make the corner of steel raised floor hard and strengthen the loading ability of edge, enough flatness and decoration.
Panel without edge trim. It leaves very tinyl seam during floor installation as the panel is without edge trim. The panel can be applied to high-computer room and place where requirement on anti-static or many wires .
Description

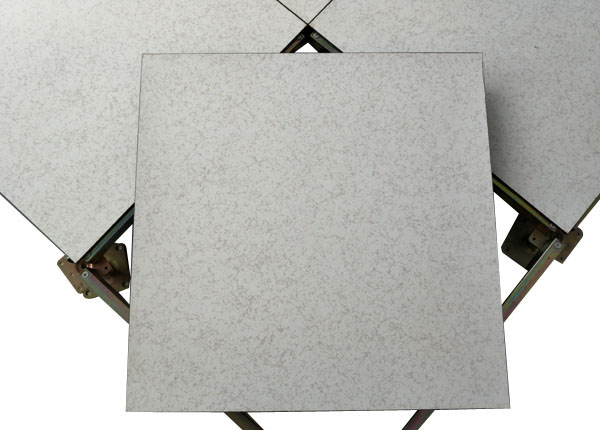

“F” edge trim is inserted between the steel panel and the surface finish. The inserted “F’ edge trim is very firm and stable . Panel with ‘F” edge trim creates perfect installation effect with tiny seam, which can be applied to high-computer room and place where requirement on anti-static or many wires.
customized type :

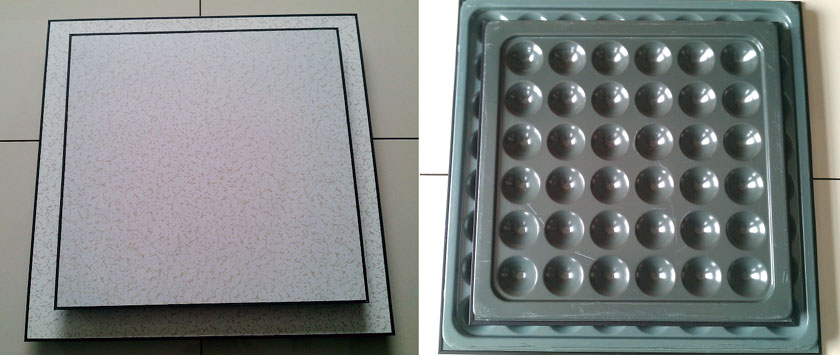

Size :600x600x40mm
Feature:
1).Designed specially for computer room, control rooms, etc
2).The raised floor consist of following parts"
a) 40mm thickness cement core panel
b) 4 pieces of black PVC strips along the side of panel
c) Covering: HPL /PVC
d) pedestal, stringer, screws
3).Light cementitious fill makes panel solid and quite
4).Completely non-combustible; class A flame spread and smoke development rating
5).Easy and quick accessibility, resist pollution, easy to clean, durable
customized type :
Size :500x500x30mm
Its advantage is light weight ,easily to install .
-
